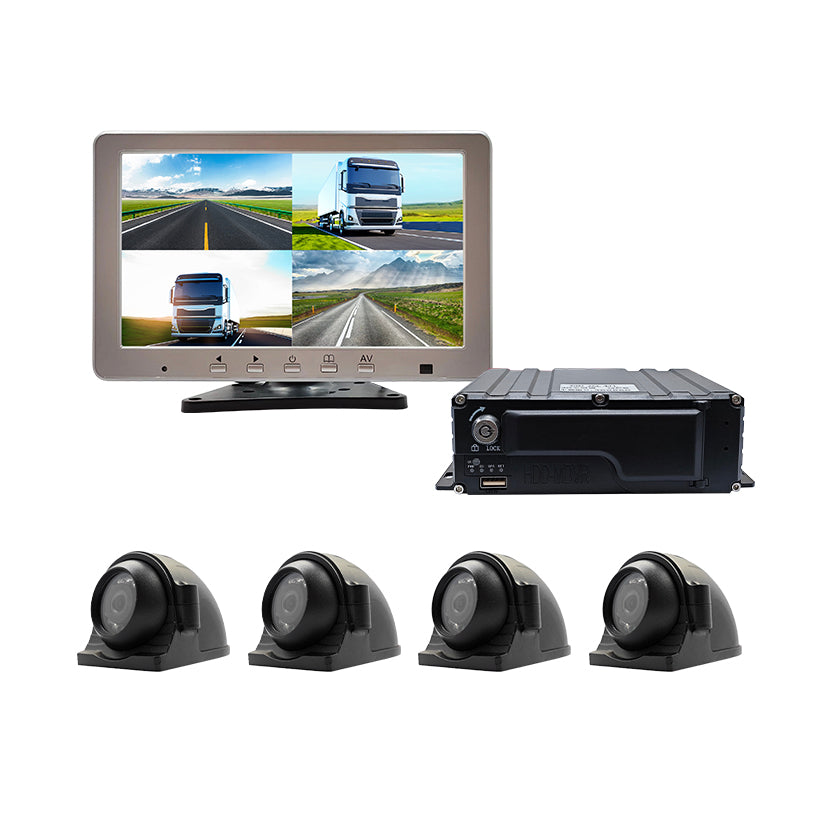

DVR With 4 Truck Cameras And A 10.1 Inch 4-split Monitor

DVR With 4 Truck Cameras And A 10.1 Inch 4-split Monitor

1.4 high-definition display cameras can monitor different areas, and the camera angles can be customized

2. 7"/9"/10.1" AHD monitor real-time display of scene images to ensure driving safety

3. Remote monitoring can be done through the mobile phone software CMSV6.

4. SD/HDD-MDVR can support 4G GPS WIFI, SD card storage, HDD hard disk recording, and can also support ADAS, DMS, BSD and other functions

  • Global Freight
  • 1 year warranty
  • Solution Customize
Custom Button
Afficher tous les détails

CAR MDVR

CAMERA
Chip sensor:SONY IMX307
Resolution: 1920*1080
Horizontal angle: 200°
System: HT511B-2.3

MONITOR
Screen: 7", 9”, 10.1“ ,10.36“,12.3“
Resolution: 1024*R.G.B*600
Display Format: 16:9
Contract: 600:1
Brightness: 800cd/m2
Power Supply: DC9~36V
Warranty: 12 months
Fit Car Model: Universal
Optional:BSD
Camera appearance: optional

truck reverse camera suppliers BSD Car Alarm Surveillance Monitoring Vehicle Security Camera Monitor Systems fisheye lens camera Truck Mobile HD MDVR Monitoring

CAR MDVR

Bulldozers are the most common vehicles in engineering vehicles and are also used very frequently. However, there are many blind spots when driving, especially the rear of the vehicle, which is sometimes completely invisible. Here, a vehicle-mounted camera is needed for monitoring.

According to customer needs, we launched a 360-degree panoramic solution with 4 AI cameras, which can not only monitor the entire vehicle without blind spots, but also monitor pedestrians within 5 meters at any time and immediately alarm. It truly achieves 360-degree safety supervision.

best 360 degree bird view camera for car 360 degree camera system 360 rv camera system 360 parking camera

CAR MDVR

MDVR can be customized according to different vehicle models, lengths, and heights. The horizontal wide angle of each camera can also be customized according to actual usage, 60 degrees, 90 degrees, 100 degrees, 110 degrees, 120 degrees, 140 degrees, 150 degrees, 170 degrees, 180 degrees, etc. Blind spot cameras can also add WDR functions to meet your requirements as much as possible. It can be used for different types of vehicles, engineering vehicles, UBS, bulldozers, excavators, cranes, shovels, forklifts, rollers, etc.

truck reverse camera truck reverse camera kit truck reverse camera wireless truck reverse camera wiring diagram truck reverse camera installation truck reverse camera sydney truck reverse camera suppliers truck reverse camera jaycar

CAR MDVR

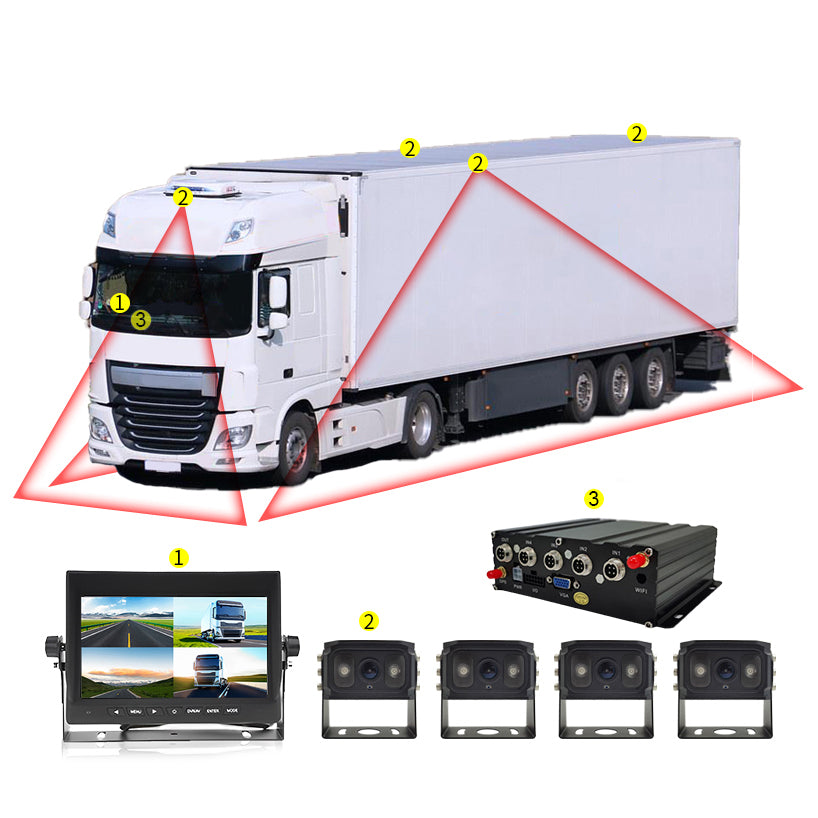

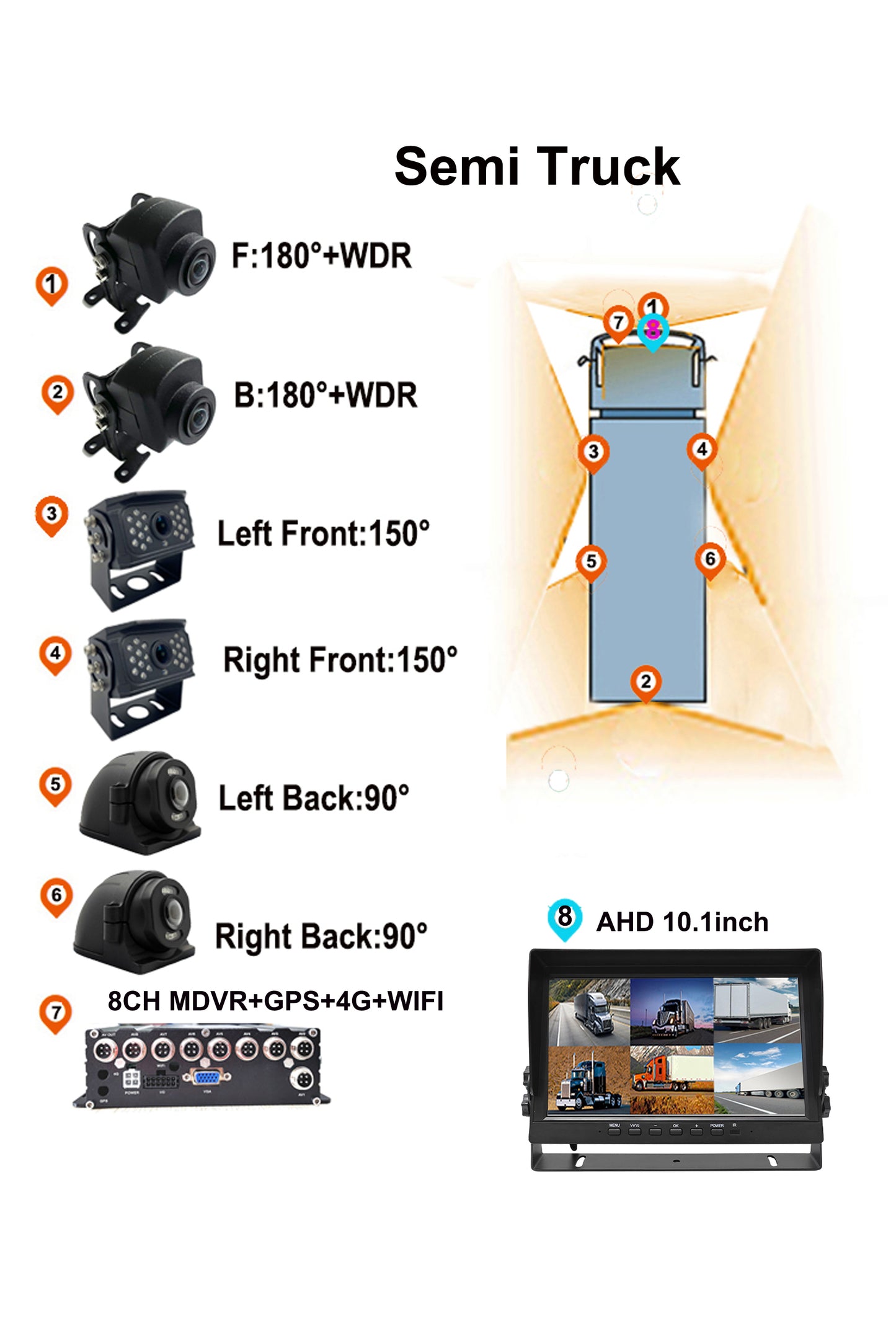

Three cameras are installed on the front of the trailer and five cameras are installed on the car body. Because the trailer head is often replaced, a 12PIN one-to-five spring cable is used when replacing the trailer head. Each set of cables uses 30 1.0mm pure copper ground wires to wrap around the video cable to prevent signal interference, ensuring that the five sets of video signals can pass through 1080P normally without any interference and can be displayed normally. An MDVR host with 4G and GPS functions is installed on the front of the vehicle, so that the latest vehicle dynamics can be viewed remotely in the office at any time.

truck camera recording system uk truck camera chs mankato truck camera system price truck camera monitoring system truck camera recording system

BUS MDVR

After the bus is installed with 360 panoramic view, the surrounding 3-5 meters scene is fully covered, 360 degrees without blind spots monitoring, with BSD function, monitoring the dynamics of pedestrians and vehicles at any time, and beeping immediately when pedestrians or vehicles approach the bus. Equipped with 4 1080P high-definition night vision cameras, the host supports 128G video cards.

Add another set of MDVR with 4G and GPS functions, equipped with 4 horizontal wide-angle 180-degree wide dynamic cameras, can monitor places 5 meters away, so that the whole vehicle is always in the front and back 20 meters left and right without blind spots monitoring, support up to 2T hard disk.

BUS MDVR commercial truck camera systems best semi truck camera system wireless 360 camera for rv

Supports using mobile APP to connect to MDVR equipment

Application models

warehouse

Exhibition hall

Certification
