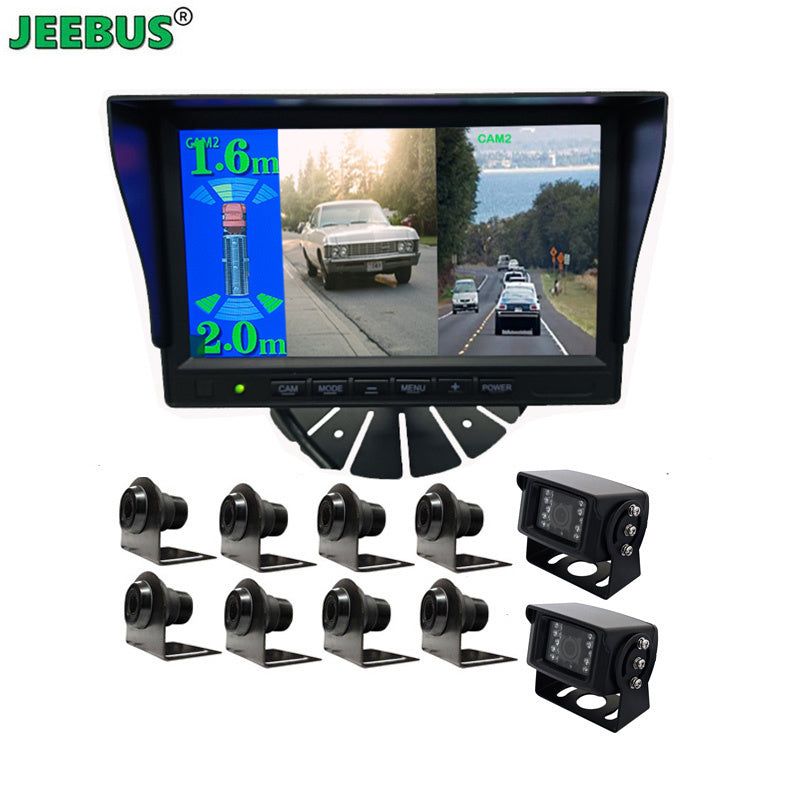

AHD 1080P Backup Camera 7inch 2CH Monitor Support SD Recording with Ultrasonic Sensor Monitoring System for Heavy Duty Truck Bus

AHD 1080P Backup Camera 7inch 2CH Monitor Support SD Recording with Ultrasonic Sensor Monitoring System for Heavy Duty Truck Bus

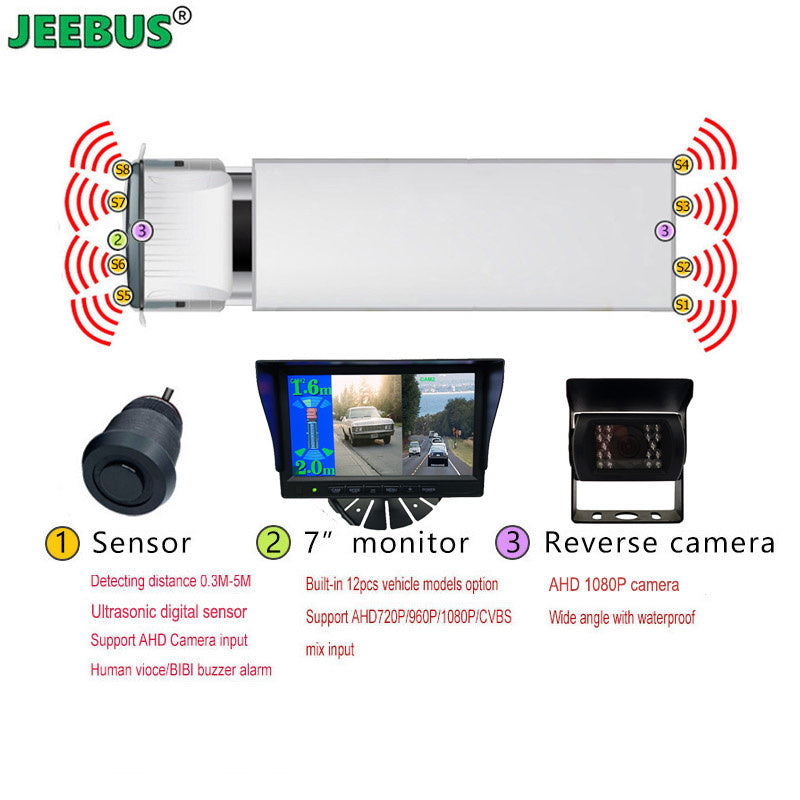

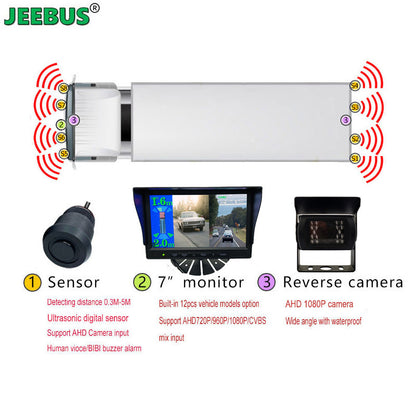

1. This is a high-end parking sensor that can be customized with up to 24 probes working simultaneously.

2. This product can be used as a truck parking sensor with high sensitivity. The real-time working effective distance is 5 meters for detecting objects and 3 meters for detecting people.

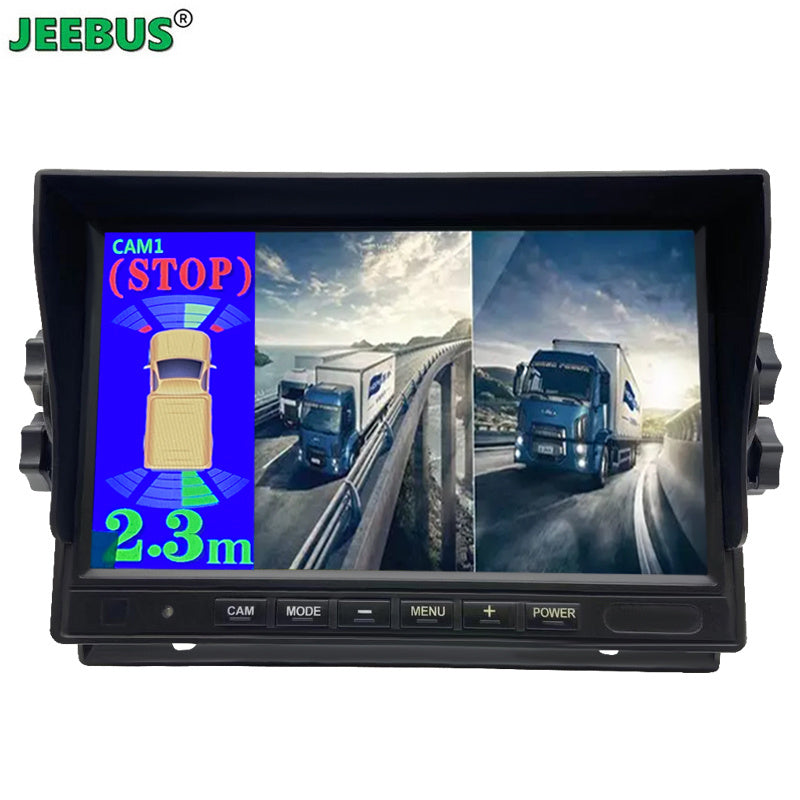

3. This parking radar is equipped with a 7-inch 1080P high-definition AHD display and supports cameras with different signals of CVBS/AHD 720P/1080P, realizing true high-definition signals.

4. This reversing radar supports the random combination of different numbers of probes, ranging from 1 to 16. In addition, from 17 to 24 high-density special vehicle parking radars can be customized.

  • Global Freight
  • 1 year warranty
  • Solution Customize
Custom Button
View full details

Truck parking sensors

MONITOR
Screen size: 7"/9"/10" IPS
MonitorResolution: 1024*600Display
Format: 16:9
Contract: 600:1
Brightness: 500cd/m2
Power Supply: DC9V~36V
RADAR:Detection
Distance: 0.1~5M
Alarm distance: 0.1~3M
Warranty: 12 months
Fit Car Model: Universal

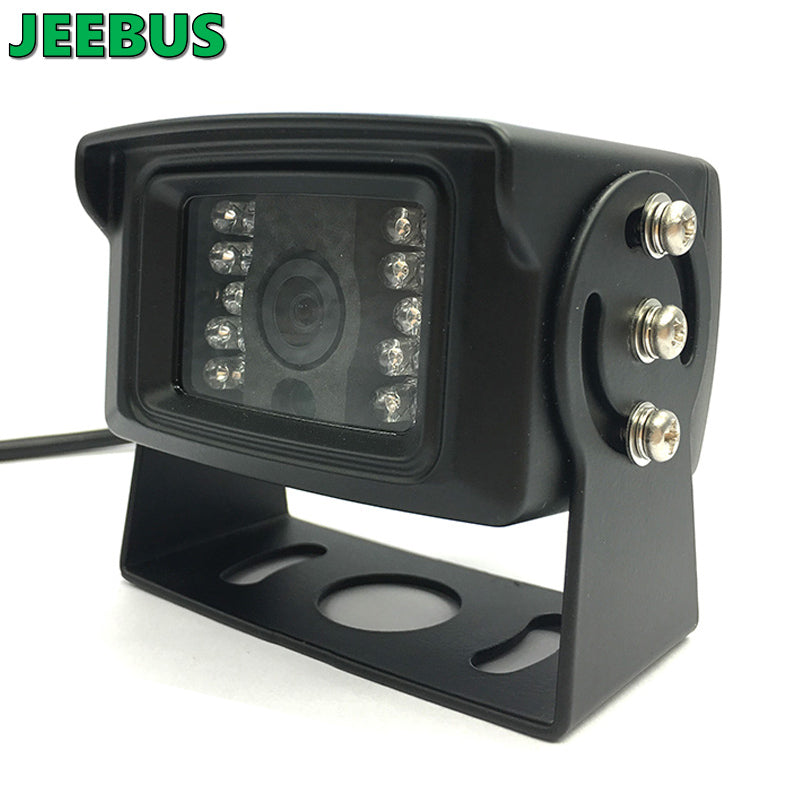

CAMERA
sensor: PC4209/GC2053/H68/IMX307
Resolution: 1920*1080 or customize
Horizontal angle: 140°/170°
Power Supply: DC 12-36 V
System: NTSC or PAL

Truck ultrasonic sensor

MONITOR
Screen size: 7"/9"/10" IPS
MonitorResolution: 1024*600Display
Format: 16:9
Contract: 600:1
Brightness: 500cd/m2
Power Supply: DC9V~36V
RADAR:Detection
Distance: 0.1~5M
Alarm distance: 0.1~3M
Warranty: 12 months
Fit Car Model: Universal

CAMERA
sensor: PC4209/GC2053/H68/IMX307
Resolution: 1920*1080 or customize
Horizontal angle: 140°/170°
Power Supply: DC 12-36 V
System: NTSC or PAL
