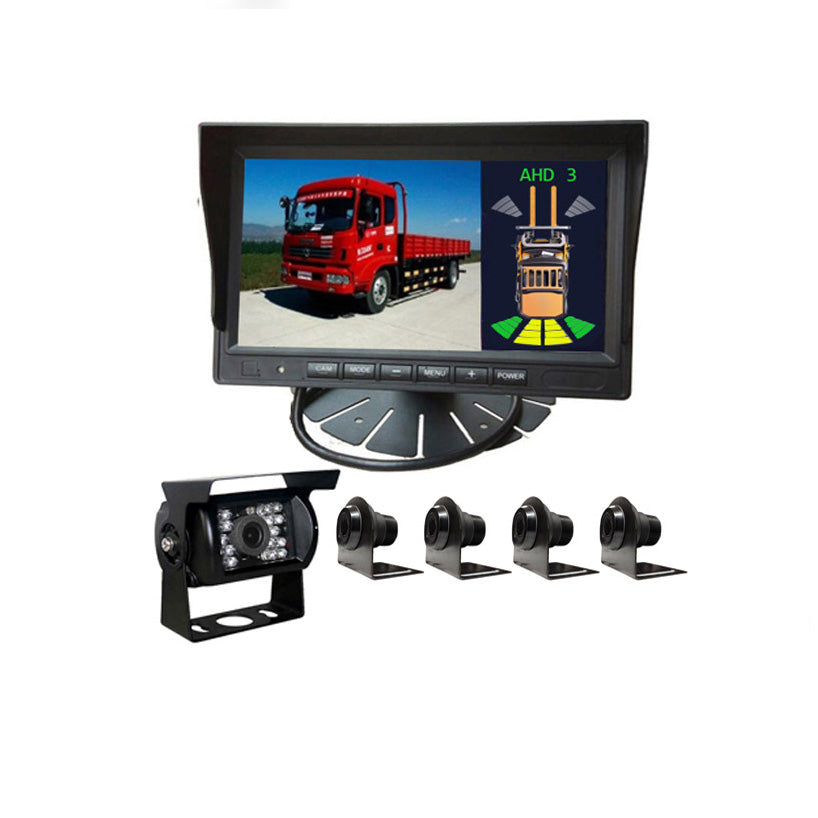

Ultrasonic Radar Parking Sensor System 4 Radar Sensors for Forklift

Ultrasonic Radar Parking Sensor System 4 Radar Sensors for Forklift

1.Equipped with one or two high-definition waterproof cameras to provide clear images

2. Radar detects obstacles and reminds you to improve safety

3. 7"/9"/10.1" AHD monitor real-time display of scene images to ensure driving safety

4. 2/ 4/6/8/10/12/14 radar sensors can be selected according to the vehicle model

  • Global Freight
  • 1 year warranty
  • Solution Customize
Custom Button
Просмотреть всю информацию

Product specification

CAMERA:
Chip sensor: AHD 2053 or customize
Resolution: 1920*1080 or customize
Horizontal angle: 140°/170°
Power Supply: DC 12-36 V
System: NTSC standard or PAL
MONITOR:
Screen size: 7", 9”, 10.1“ IPS Monitor
Resolution: 1024*600
Display Format: 16:9
Contract: 600:1
Brightness: 500cd/m2
Power Supply: DC 9~36V
RADAR:
Detection Distance: 0.4~5M
Alarm distance: 0.3~3M
Warranty: 12 months
Fit Car Model: Universal

Wire diagram

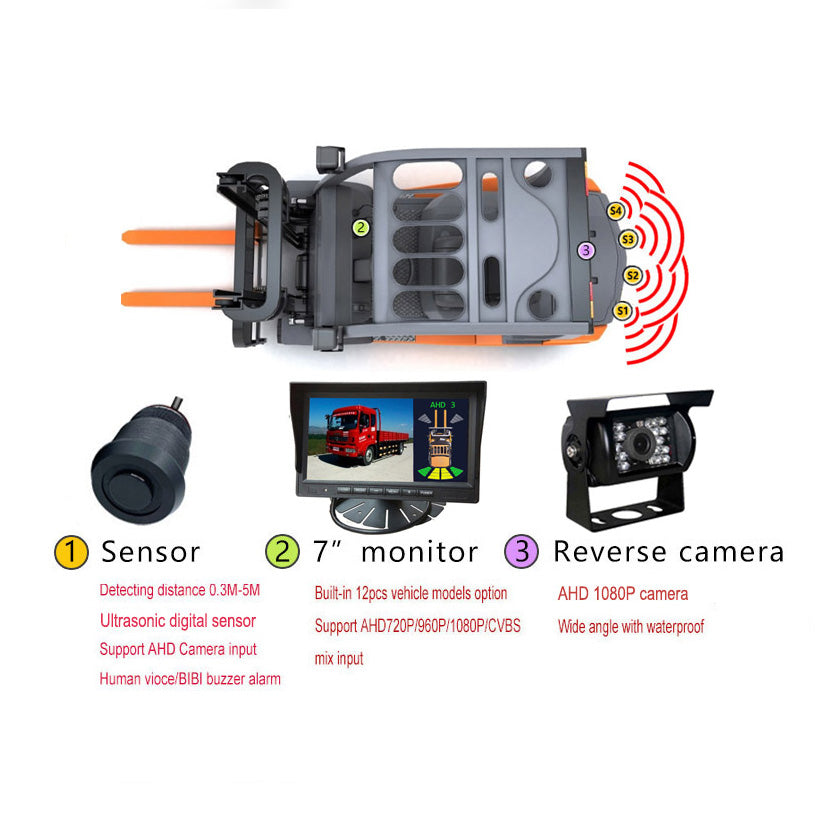

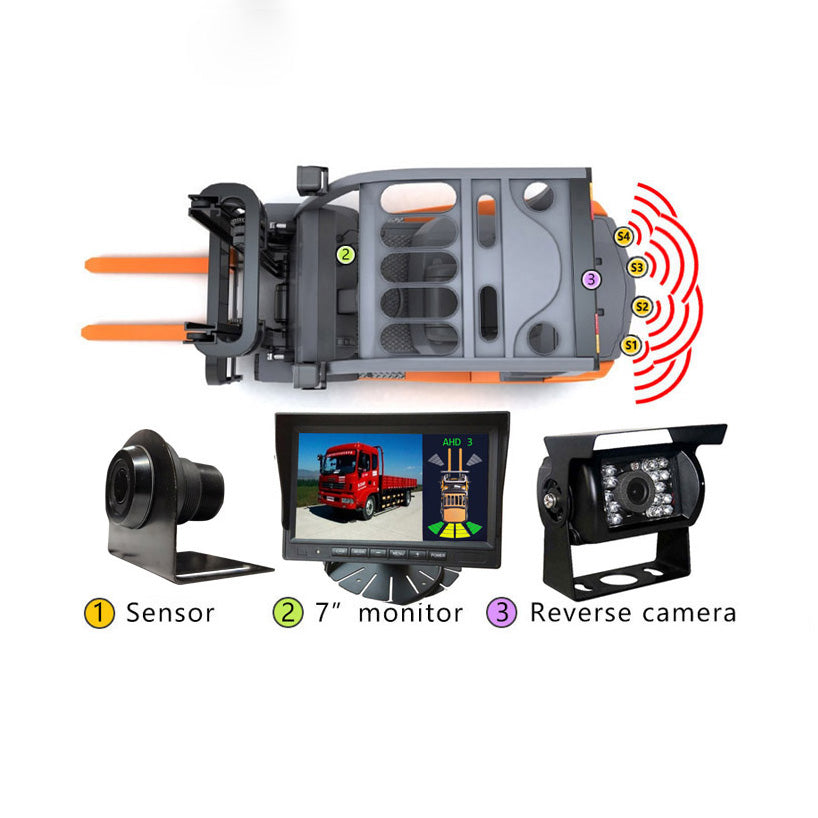

The four radar probes can all be installed in the front of the car, or they can be installed in the back of the car, or two in the front and two in the back.

Radar detection distance
